Libi Technologies : GPS Vehicle Tracking System in India

LT05+

Device Features

Support GPS/Beidou, AGPS, LBS,with accurate position performance
Built in high sensitive G-sensor accelerometer
Supports intelligent self-diagnosis, intelligent power save mode, remote fuel and power cut off, OTA and alarm functions
Small in size and wide voltage, especially designed for scooter, motorcycle, electric vehicles and automotive financial risk control project
Small and convenient for conceal installation
Functions
High position accuracy
support GPS/Beidou and LBS
support blind zone compensation
static drift suppression
Multiple alarms detecting including vibration
cable cut off
speeding,low speed,low voltage etc
Intelligent control
supports remote power and fuel cut off
remote configuration and OTA

Hardware Technicla Specification

Working Voltage-DC 9V~100

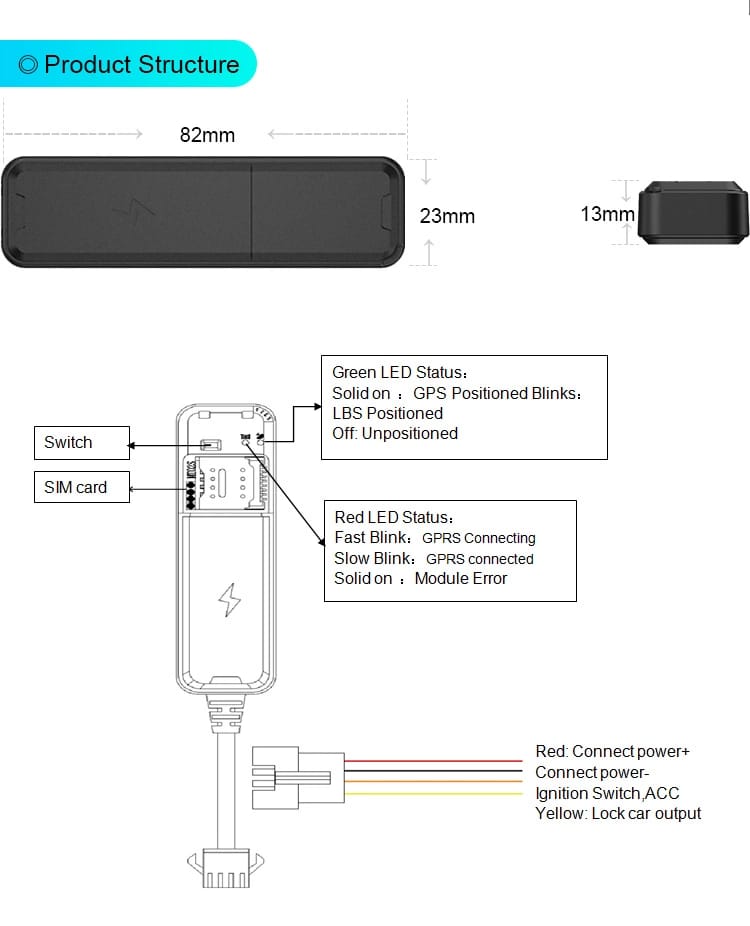

Dimension-82mm×22mm×12mm
Working Current-Average Current<30mA (DC12V),Maximum Current<100mA(DC12V)
Battery Production-Anti-200V power supply reverse connection; main voltage detection
Built in Battery-120mAH, 3.7V, Lithium polymer battery
Working Temperature= -20℃~70℃
Storage Temperature= -40℃~85℃
Relative humidity=5%~95%
GPRS Class 12,TCP/IP
GPS Channel 20
GPS Sensitivity-159dBm
Acquisition Sensitivity -144dBm
Position Accuracy-5~10m
TTFF (Open Sky)
Cold Start: <38s
Warm Start:<32s
Hot Start:<2s
StandbyAverageCurrent-~0.8mA(12V DC)~0.4mA(24V DC)
GSM/GPS Antenna Built-in design
Data Transmit TCP, SMS

LT05+ comes with all the features of LT05 in addition to capability of remotely stopping the vehicle with a simple SMS command or by pressing a button from the Libi Technologies mobile app.
